Microinvasive Portable Blood Glucose Monitor Medical Device BGM-101

hemoglobin meter diagram
  • hemoglobin meter diagram
  • hemoglobin meter for home use
  • hb meter diagram

Product Details:

Place of Origin: China

Brand Name: HZ

Model Number: BGM-101

Payment & Shipping Terms


Features of Microinvasive Portable Blood Glucose Monitor Medical Device BGM-101

Blood Sugar Meter / Diabetes Testing System /with Carrying Case in mmol/L or mg/dL


Specification of Microinvasive Portable Blood Glucose Monitor Medical Device BGM-101

Highlight: Microinvasive Blood Glucose Monitor, Blood Glucose Monitor BGM-101, portable glucose monitor BGM-101

Model No.:
BGM-101
Methodology:
Electrochemistry Method
Analysis Item:
Glucose
Measurement Range:
Glu: 20~600mg/dL (1.1-33.3mmol/L)
Measurement Unit:
Mmol/L, Mg/dL
Specimen:
Fresh Capillary Or Venous Whole Blood


Specification

Model No.

BGM-101

Methodology

Electrochemistry Method

Certification

CE0123 (for home & hospital use)

Analysis Item

Glucose

Measurement Range

Glu: 20~600mg/dL (1.1-33.3mmol/L)

Measurement Unit

mmol/L, mg/dL

Specimen

Fresh capillary or venous whole blood

Specimen Volume

1μL

Test Time

In 5 Seconds

Power Source

One 3.0V CR2032 lithium battery

Battery Life

6 months or approximately 1,000 tests

Memory

Glucose:200 records

Automatic Shut Off

1 minute after last use

Meter Storage Conditions

0-55°C; ≤90% RH

System Operating Conditions

8-37°C; 0-90% RH; seal-level ≤3000M

Meter Warranty Period

2 years

Meter Shelf Life

5 years

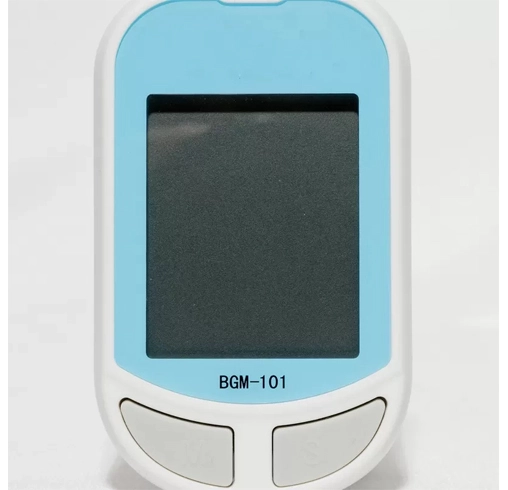

Meter Display

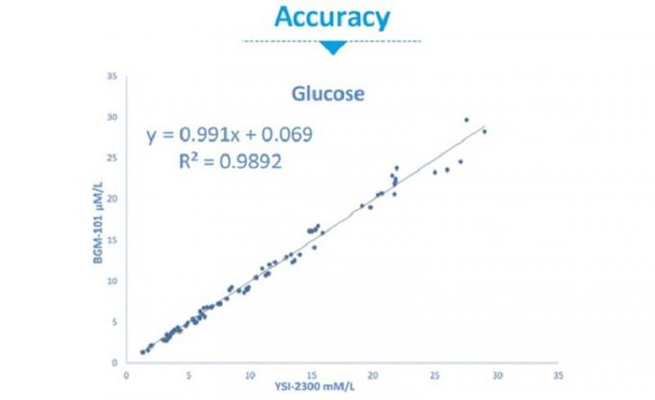

Accuracy


hb meter manual


Packing Details


Blood Sugar Meter

BGM-101

1 Meter

1 3.0V CR2032 Battery

1 User Manual

1 Warranty Card

1 Carrying Case


Packing Size

Meter Model No

BGM-101

Meter Size

84.7mm*52mm*18mm(L*W*H)

Meter Weight

50g

Single Package Size

11cm*4.5cm*16cm(L*W*H)

Single Package Gross Weight

131g

70 Sets/Ctn Size

56.5cm*34.5cm*33cm (L*W*H)

70 Sets/Ctn Gross Weight

10kg


Delivery


hemoglobin meter uses


Services

1. Professional R&D team for after-sales service.7-24 contact online;
2. On-site laboratory test and quality control;
3. Registration service;
4. OEM favored;
5. CE & ISO13485 certification;
6. Top quality products with fast delivery;
